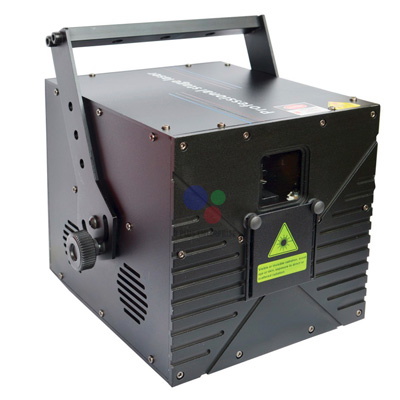

M3/1-3W GREEN ANIMATION LASER
|
Model |
Description |
Configuration |
|
M3-G3000 |
3W Green animation laser |
G532-3W(CNI) |
|
M3-G2000 |
2W Green animation laser |
G532-2W(CNI) |
|
M3-G1000 |
1W Green animation laser |
G532-1W(CNI) |
1. The most common single green animation laser for about 400-800 square bar hall, a small stage, advertising and other performances,green laser projection far, sharp light, emission big angle, wide range of applications.
2.1-3W Green laser light all use CNI green 532nM laser diode .Stable performance, high brightness, low attenuation.
3.new LCD panel program. Powerful functions, the interface is complete. With SD card , containing rich programs,can be directly use DMX control directly create the same effect as the laser software for your computer.The built-in various music modes, so newcomers are no pressure, Also supportsRJ45 cable transmission signal, So you no longer worries arrangement of wires.
◎ Rated voltage and power: AC100~240V 50/60Hz;<500W
◎ Scanner: 30K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)
◎ Modulation: TTL (analog modulation is optional) Beam diameter and Divergence : 4mm <2mrad
◎Control Modes: Music(four mode with blackoout)/ Automatic/Master-Slave/DMX512(25CH)/SD card control/Compatible ILDA laser show software
◎Demonstration effect:Built-in 128 pattern,SD card unlimited storage.By DMX choose pattern scene or SD card laser show.
◎ DMX effect: Double pattern modes,and with the function of unique blanking,strobing, rotating, movement, billowing, zoom,drawing,speed and color etc.
◎ Application: Disco, Clubs, KTV, Pub, Family party, etc
◎ Size:42X35X36CM
◎ N.G/G.W:11/13KG
