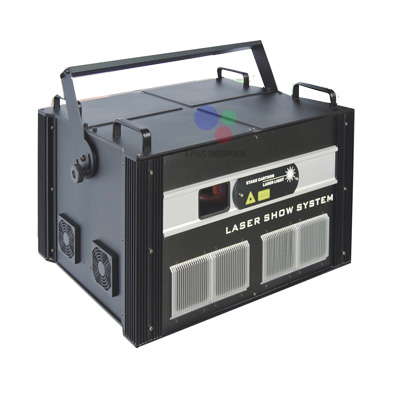

A22/ 20-25W RGB ANIMATION LASER
|
Model |
Description |
Configuration |
|
A22-RGB25000 |
25WRGB Animation laser(high) |
R635-5W/G532-8W/B447-12W(CNI) |
|
A22-RGB20000 |
20W RGB Animation laser(high) |
R635-5W/G532-5W/B447-10W(CNI) |
1.The most commonly used and most cost-effective performance of high-power laser light can be widely used stadium, concerts, water screen movie, the opening ceremony and other large-scale performances and advertising.
2.The same digital power laser light, we tend to put a higher proportion of red and green light to use, to ensure the whole lamp brightness, the choice of the lens greater speed and better imported galvanometer, the overall output better.
3.new LCD panel program. Powerful functions, the interface is complete. With SD card , containing rich programs,can be directly use DMX control directly create the same effect as the laser software for your computer.The built-in various music modes, so newcomers are no pressure, Also supportsRJ45 cable transmission signal, So you no longer worries arrangement of wires.
◎Rated Voltage：AC100~240V 50/60Hz Rated Power：<1200W
◎Scanner：EMS 40K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)
◎Modulation: analog modulation
◎Beam diameter and Divergence : 4mm;<2mrad
◎Control Modes： Music (four mode with blackout)/Automatic/Master-Slave/DMX512(25CH)/SD card control/Compatible ILDA laser show softwar
◎Control Interfaces :ILDA Standard DB25 Connector,International Standard DMX 512,Phoenix(Germany) or Pangolin (USA) etc.Lightful RJ45
◎Demonstration effect:Built-in 128 pattern,SD card unlimited storage.by DMX choose pattern,scene or SD card laser show.
◎DMX effect:Double pattern modes, and with the function of unique blanking, frequently flashing, rotating, movement, billowing, zoom, drawing, speed and color etc
◎Security:no signal no emit,Key power
◎Security Intelligent function:no signal no emit,Key power; signal is changed automatically(PC to DMX or DMX to PC),Quick Channel, one of the product channels,SD update online.
◎Operating requirement: dry, less dust, 10~40℃(environmental temperature) ,will reduce the attenuation of the diode and extend the life of the light.
◎Application：Disco, Clubs, KTV, Pub, Vocal concert,Television Station,stadium,Advertising promotion, etc
◎Size:75*54*62CM
◎N.G/G.W：40/65Kg
