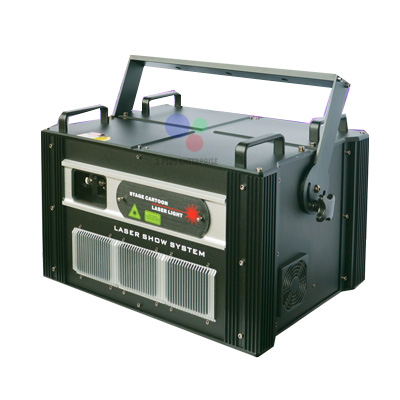

A24 6-8W RGB ANIMATION LASER
|
Model |
Description |
Configuration |
|
A24-RGB15000V1 |
15WRGB animation laser(high) |
R635-4W/G532-5W/B447-6W(CNI) |
|
A24-RGB15000V2 |
15WRGB animation laser(low) |
R635-3W/G532-4W/B445-8W |
|
A24-RGB12000V1 |
12WRGB animation laser(high) |
R635-3W/G532-4W/B447-5W(CNI) |
|
A24-RGB12000V2 |
12WRGB animation laser(low) |
R635-3W/G532-3W/B445-6W |
|
A24-RGB10000V1 |
10WRGB animation laser(high) |
R635-2W/G532-3W/B447-5W(CNI) |
|
A24-RGB10000V2 |
10WRGB animation laser(low) |
R635-2W/G532-3W/B445-5W |
|
A24-RGB8000V1 |
8WRGB animation laser(high) |
R635-2W/G532-3W/B447-3W(CNI) |
|
A24-RGB8000V2 |
8WRGB animation laser(middle) |
R635-2W/G532-3W/B445-4W |
|
A24-RGB8000V3 |
8WRGB animation laser(low) |
R638-2W/G532-2W/B445-4W |
1.Our A24 series has been the most burst models on the market, this year we also rolled out this series of more power selection, 8W-15W RGB is most popular in recent years, suitable for 600-1000 square meters of large and medium-sized bar, stage performances, advertising campaign
2.Lightful got patent products. The appearance of high-grade atmosphere, light volume, design of double deck structure. Upper layer light path completely dust proof, good heat radiation of the lower layer circuit, effective protective smoke oil leaching harm to ensure the life of the laser light.
3.new LCD panel program. Powerful functions, the interface is complete. With SD card , containing rich programs,can be directly use DMX control directly create the same effect as the laser software for your computer.The built-in various music modes, so newcomers are no pressure, Also supports LightfulRJ45 cable transmission signal, So you no longer worries arrangement of wires.
◎Rated Voltage：AC100~240V 50/60Hz Rated Power：<1000W
◎Scanner: 40K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)
◎Modulation:analog
◎Beam diameter and Divergence : 5mm;<2mrad
◎Control Modes： Music four mode with black out)/Automatic/Master-Slave/DMX512(25CH)/SD card control/ Compatible ILDA laser show software
◎Control Interfaces :ILDA Standard DB25 Connector,International Standard DMX 512,Phoenix(Germany) or Pangolin (USA) etc,Lightful RJ45.
◎Demonstration effect:Built-in 128 pattern,SD card unlimited storage.By DMX choose pattern scene or SD card laser show.
◎DMX effect: Double pattern modes,and with the function of unique blanking,strobing, rotating, movement, billowing, zoom,drawing,speed and color etc.
◎Security Intelligent function: no signal no emit,Key power,signal is changed automatically(PC to DMX or DMX to PC),Quick Channel, one of the product channels, SD card update online.
◎Operating requirement: dry, less dust, 10~40℃(environmental temperature) ,will reduce the attenuation of the diode and extend the life of the light.
|◎Application：Disco, Clubs, KTV, Pub, Vocal concert,Television Station,stadium,Advertising promotion etc.
◎Size：60*48*60CM
◎N.G/G.W：30/55Kg
