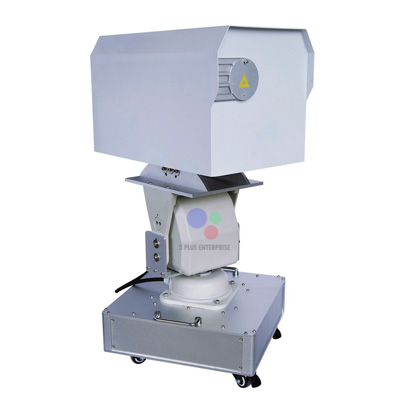

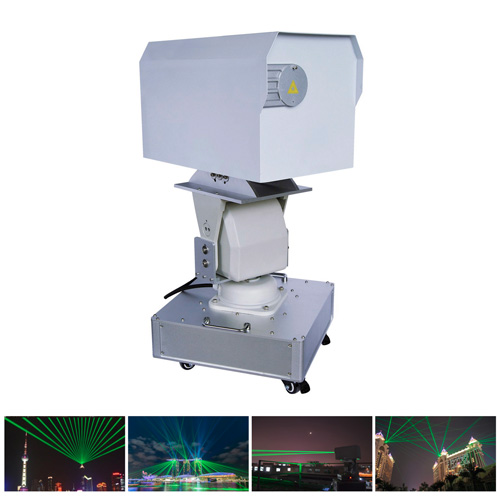

A29/10~40W SUPER POWER LANDMARK LASER
|
Description |
Configuration |
|
|
A29-G40000 |
40W Green landmark laser |
G532nM-40W（CNI） |
|
A29-G30000 |
30W Green landmark laser |
G532nM-30W（CNI） |
|
A29-G20000 |
20W Green landmark laser |
G532nM-20W（CNI） |
|
A29-G15000 |
15W Green landmark laser |
G532nM-15W（CNI） |
|
A29-G10000V1 |
10W Green landmark laser |
G532nM-10W（CNI） |
|
A29-G10000V2 |
10W Green landmark laser |
G532nM-10W（CNI） |
High power green laser scanning system, set the application of laser technology,computer image processing technology and the high-speed galvanometer control technology , will be pure, dazzle beautiful green laser over the city changes the dynamic line, surface, body of revolution, and edit the graphics and text.Visual effect is strong, shock, with majestic demeanor, is city landmark buildings and famous scenic , is a big stage advertising, party and designs city-lighting project, a symbol of high quality .At the top of the bridge can also be installed to increase the highlights of the night view of the bridge.
◎Rated Voltage：AC100~240V 50/60Hz Rated Power：<1500W
◎Scanner：DT40K high speed module scanner (Can be upgraded to 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)
◎Modulation: TTL (analog modulation is optional)
◎Control Modes:Music(four mode with blackout)/Automatic/DMX512(25CH)/SD card control/Compatiable ILDA laser show software.
◎Control Interfaces:ILDA Standard DB25 Connector,International Standard DMX 512, Lightful RJ45
◎Demonstration effect:Built-in 64 pattern(Customizable)You can only choose cartoon effect or pattern effect
◎Pan:320°◎Water resistant:IP33(Outdoor use)
◎Application：Cityscape, Architectural landmark,Laser show,Advertising promotion, etc
◎Size：55X44X100CM
◎N.G/G.W：39/59KG
